Description

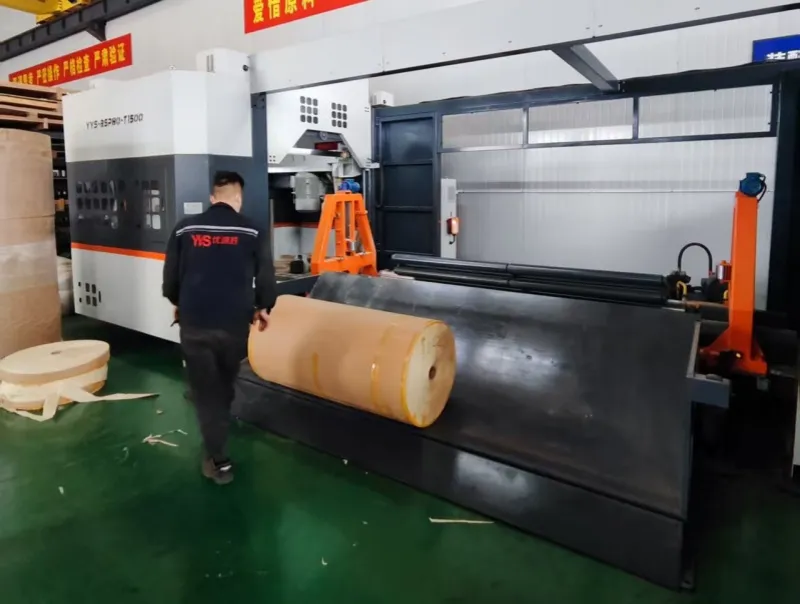

The CNC Band Saw Paper Roll Slitter is a high-precision, fully automated log-slitting machine. It utilizes saw blades to directly cut wide rolls into narrow ones, with just 2mm material loss per cut. Capable of automatic multi-section cutting, it significantly reduces labor costs and is ideal for processing high-value paper roll materials.

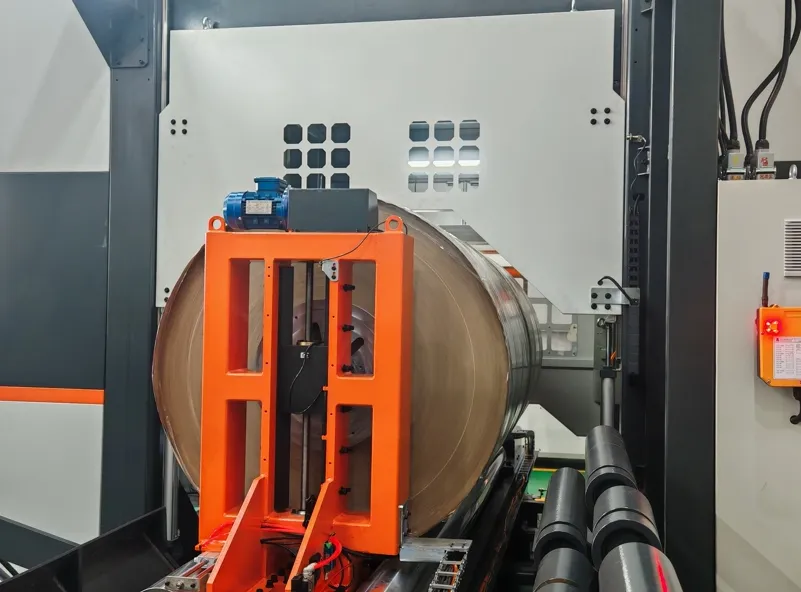

Features
2mm material loss per cut: saw blade cutting ensures high precision with minimal material waste.

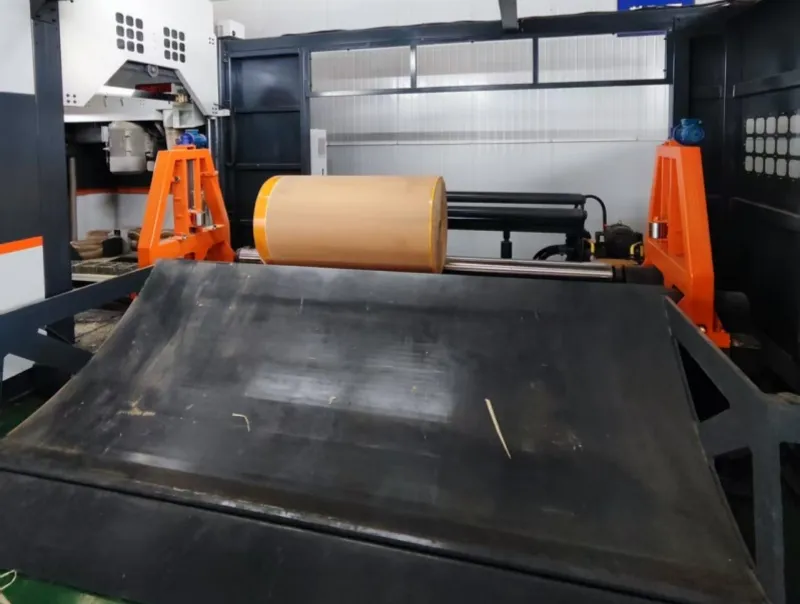

Automated roll loading/unloading: significantly reduce manual handling
Application Scenarios
Trim damaged edges of paper rolls
Precision width adjustment for paper rolls
Parameter Table
The CNC Band Saw Paper Roll Slitter from Paper Saw King integrates automatic roll handling, intelligent measurement, and precision saw cutting technology into one compact industrial system. Designed for medium to large-scale paper converting operations, this equipment supports wide rolls, large diameters, and multi-specification production with minimal material loss. With stable structural design and optimized motion control, it ensures reliable long-term performance under continuous workload.
| CNC Band Saw Paper Roll Slitter | CNC Band Saw Paper Roll Slitter |
| Roll Width | 5cm-3m |
| Roll Dia | 60cm to 1.5m |
| Paper Loss | 2mm |
| Speed | 13 mins to cut one roll( diameter 1.25m). |
| Voltage Frequency | 380V (can customize) 50- 60Hz (can customize) |
| Total Power | 43 kW |
| Control System | PLC Full automatic |
| Weight | 12T |
| Saw Blade Service Life | Requires resharpening after 80 cutting cycles |
| LxWxH | 10000x4110x2870mm |
PLC-based CNC control platform
High-accuracy motion positioning
Programmable cutting parameters
Stable repeatability for batch production
Ensures precise control over every cutting cycle.

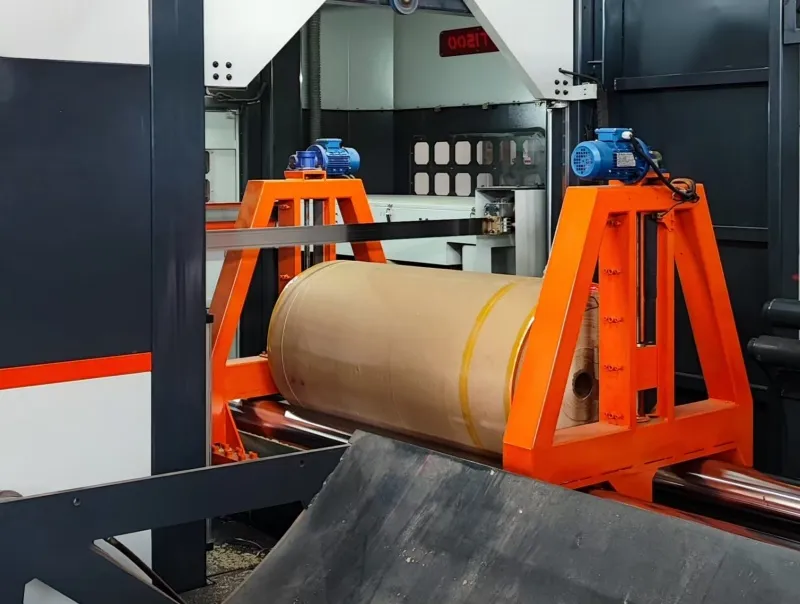

Industrial-grade band saw system
Low vibration cutting process
Smooth cutting surface
Reduced edge deformation
Suitable for thick and dense paper rolls.
Only 2mm paper loss per cut
Maximizes raw material utilization
Reduces scrap rate
Improves profit margin
Ideal for high-value paper products.
Automatic feeding and positioning
Intelligent parameter setting
One-touch start operation
Reduced manual intervention
Improves production efficiency and labor utilization.
Automatic roll width detection
Automatic diameter measurement
Real-time data feedback
Eliminates manual measurement errors
Ensures cutting accuracy for every order.
Optimized motor configuration
Lower power consumption (43 kW)
Stable load distribution
Reduced operating cost
Supports long-term energy-saving operation.
| Item | Specification |
|---|---|
| Model | CNC Band Saw Paper Roll Slitter |
| Roll Width | 5 cm – 3 m |
| Roll Diameter | 60 cm – 1.5 m |
| Paper Loss | 2 mm per cut |
| Cutting Speed | Approx. 13 min / roll (Ø1.25 m) |
| Voltage | 380V (Customizable) |
| Frequency | 50 / 60 Hz (Customizable) |
| Total Power | 43 kW |
| Control System | PLC Full Automatic |
| Machine Weight | 12 Tons |
| Saw Blade Life | Resharpen after 80 cycles |
| Machine Size (L×W×H) | 10000 × 4110 × 2870 mm |
This CNC band saw slitting machine is engineered for high-output paper processing environments:
Supports jumbo rolls up to 1.5 m diameter
Handles ultra-wide materials up to 3 m
Maintains consistent cutting quality
Suitable for continuous multi-shift operation
Optimized mechanical structure ensures high stability under heavy-load conditions.
Kraft paper
Corrugated base paper
Duplex board
Coated paper
Offset printing paper
Tissue jumbo rolls
Industrial specialty paper
Suitable for both recycled and virgin paper materials.
Paper manufacturing plants
Packaging production lines
Printing material suppliers
Tissue converting factories
Paper trading and distribution centers
Industrial paper processors
Supports both in-house production and commercial converting services.
The CNC Band Saw Paper Roll Slitter supports intelligent production management:
Production data recording
Fault alarm system
Job parameter storage
Optional MES/ERP connection
Remote monitoring support
Helps customers build digitalized paper processing lines.
Paper Saw King applies strict industrial manufacturing standards:
Heavy-duty welded steel frame
Precision-machined transmission components
Industrial linear guide rails
Dynamic balancing inspection
Full-load testing before shipment
Each machine undergoes multi-stage inspection to ensure stable performance.
Long blade service life (80 cycles per sharpening)
Modular mechanical structure
Easy access maintenance design
Standardized spare parts system
Preventive maintenance support
Reduces downtime and lifecycle costs.
Paper Saw King offers flexible customization services:
Special roll width and diameter ranges
Electrical standard customization
Control language configuration
Safety protection upgrades
Automatic conveyor integration
Dust extraction system
OEM and project-based customization are supported.
We provide complete technical support for global customers:
Installation guidance
Operator training
Online technical assistance
Spare parts supply
Remote troubleshooting
Maintenance scheduling
Ensures long-term stable operation.
Specialized in paper roll cutting equipment
Strong engineering and R&D team
Rich export experience
Proven industrial references
Complete technical documentation
Fast-response service network
Paper Saw King is committed to delivering reliable and cost-effective paper processing solutions.
Looking for a reliable CNC Band Saw Paper Roll Slitter for your paper converting line?
Contact Paper Saw King today to receive professional technical consultation and competitive quotation.
