Description

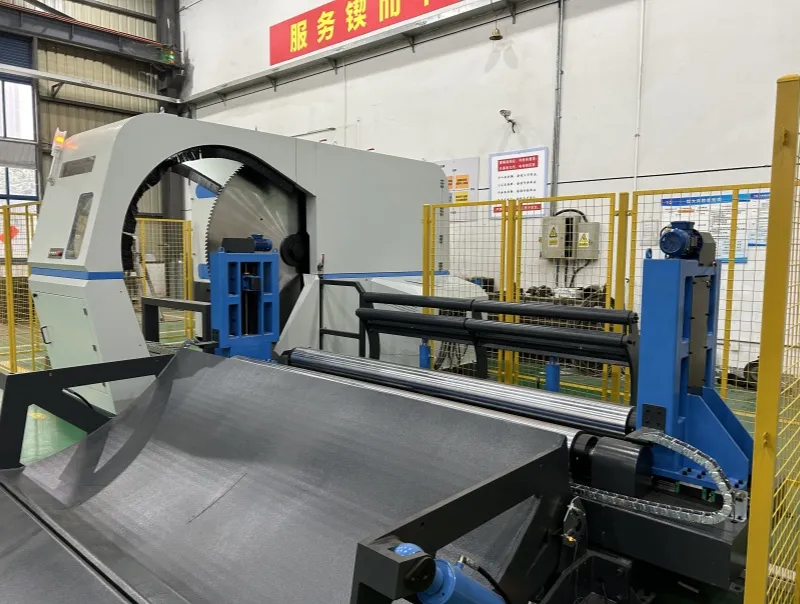

ZS1800 Circular Saw Paper Roll Slitter features a sleek and durable design with user-friendly operation, equipped with an automatic blade retraction function that enables cutting a full paper roll in just 5 minutes. It is ideal for manufacturers requiring high-volume paper roll cutting.
Main Characteristics
Cuts a full paper roll in just 5 minutes
Handles rolls up to 1.5m diameter × 3.8m width
Auto-blade retraction reduces manual operation
Durable blades withstand 500+ cuts per set
Application Scenarios
Trim damaged edges from paper rolls
Paper packaging plants adjust base paper dimensions
Specification
A 380V 50-60Hz Paper Roll Cutter is an industrial-grade machine designed to handle medium-to-large rolls of paper with high power input, ensuring precise and continuous slitting. Unlike low-voltage or small-scale cutters, this type of paper roll slitting machine is suitable for facilities with demanding production requirements.
Key capabilities include:
Roll widths ranging from 400 mm to 1,800 mm
Roll diameters up to 1,000 mm
High-torque cutting suitable for coated, thermal, or specialty papers
It is widely used in printing factories, packaging production lines, and large-scale retail paper conversion operations.
For industrial paper processing, packaging, and printing operations, precision, efficiency, and safety are key. A 380V 50-60Hz Paper Roll Cutter is designed for heavy-duty environments, delivering consistent, high-speed slitting of paper rolls while maintaining operational reliability.
| Model | ZS1800 Circular Saw Paper Roll Slitter |
| Paper Width | Less than 3m |
| Paper DIA | 30cm-1.8m |
| Speed | 5-8mins/roll |
| Voltage | 380V（Can customize ） |
| Frequency | 50-60HZ (Can customize) |
| Power | 66KW |
| Weight | 7T |
| Cutter blade speed | 740R/min |
| How to Place | Plat on level ground, willfully adjust allowed |
| Blade life time | The blade should be sharpened by special tool after cutting 500 times. |
This machine is engineered to meet the expectations of production and procurement teams who need efficiency, precision, and long-term reliability:
380V high-voltage input ensures stable operation for continuous cutting
Durable drive systems for long-term, heavy-load production
Adjustable tension and alignment for accurate slitting
Circular or straight blades depending on paper type
Reduces material loss and improves downstream processing quality
Compatible with printing paper, thermal paper, coated paper, and specialty laminates
Can cut standard rolls, jumbo rolls, or customized widths
PLC-controlled interface with touchscreen display
Automatic feeding, alignment, and roll unloading reduce manual labor
Sensors monitor roll diameter, core size, and tension to ensure uniform cutting
Emergency stop, protective guards, and interlock systems
Meets CE, ISO, and industrial safety standards
The 380V 50-60Hz Paper Roll Cutter is used wherever consistent paper roll processing is required:
Printing Factories: Cut large rolls into sheets or smaller rolls for books, labels, and brochures
Packaging Industry: Slit coated or laminated paper for packaging, cartons, and wrapping
Retail & POS Supplies: Prepare thermal or receipt rolls in bulk for high-volume usage
Industrial Paper Products: Process specialty papers such as carbonless or coated varieties for commercial use
| Specification | Typical Range |
|---|---|
| Roll Width | 400 mm – 1,800 mm |
| Roll Diameter | Up to 1,000 mm |
| Core Diameter | 1” – 3” (customizable) |
| Material Types | Printing paper, thermal paper, coated paper, laminates |
| Voltage / Frequency | 380V, 50-60Hz |
| Tension Control | Servo-driven or pneumatic |
When choosing a high-voltage paper roll cutter, consider:
Roll Size & Production Volume: Ensure the machine meets your output requirements
Material Type: Verify compatibility with your specific paper types
Automation Needs: Determine the desired level of feeding, cutting, and unloading automation
Maintenance & Support: Confirm availability of training, parts, and service
Energy Efficiency & ROI: Balance power consumption with long-term operational savings
Paper Saw King provides industrial-grade 380V 50-60Hz paper roll cutters designed for heavy-duty precision, reliability, and long-term efficiency. Our machines meet the needs of diverse industrial applications, supporting consistent production and operational excellence.
For tailored solutions or guidance on selecting the right configuration for your materials, roll sizes, and production demands, contact our team today. Discover how a 380V 50-60Hz Paper Roll Cutter can enhance efficiency, improve consistency, and reduce operational costs.
Customized Products
We offer comprehensive customization services that cover appearance, functionality, and configuration – please feel free to share your specific requirements.
