Description

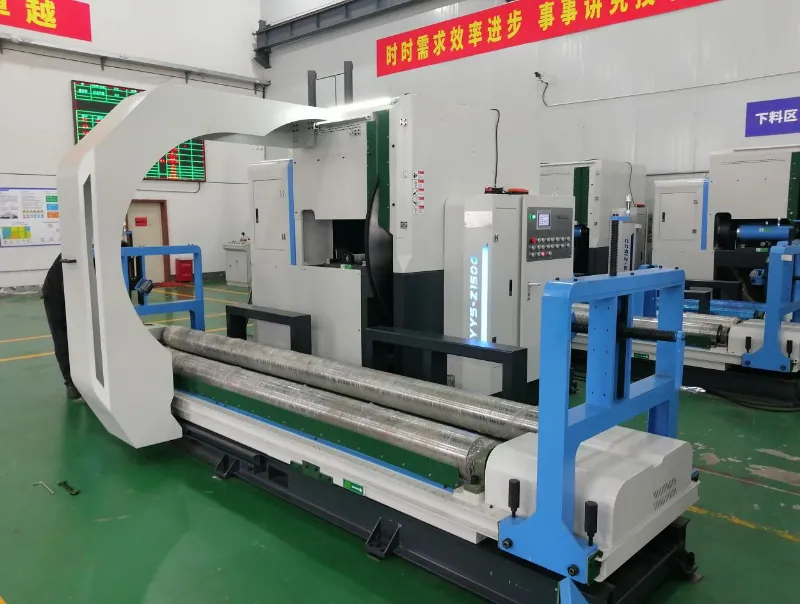

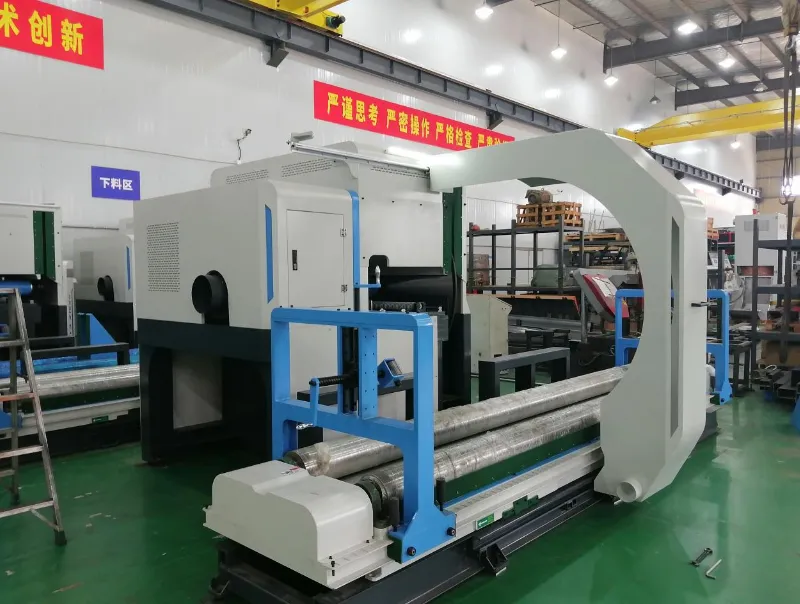

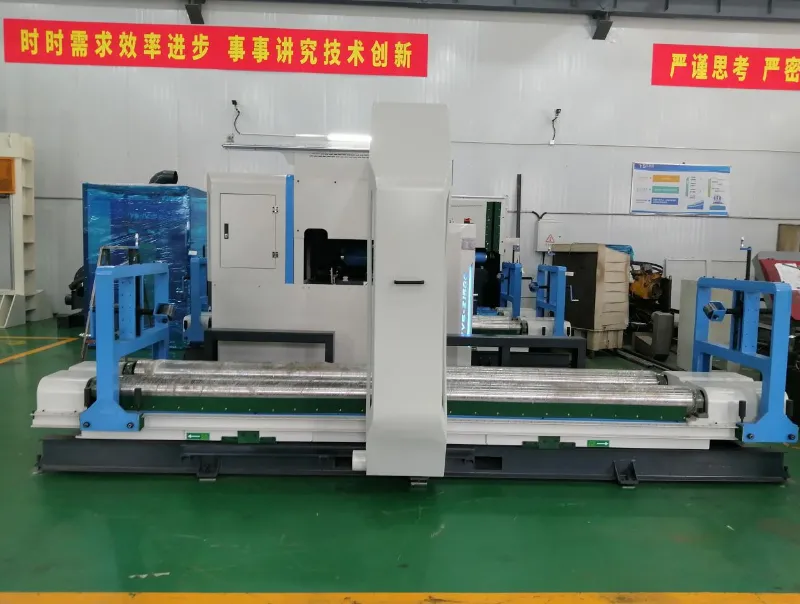

Z1500 Circular Saw Paper Roll Slitter features a sleek and durable design with user-friendly operation, equipped with an automatic blade retraction function that enables cutting a full paper roll in just 5 minutes. It is ideal for manufacturers requiring high-volume paper roll cutting.
Main Characteristics
Cuts a full paper roll in just 5 minutes
Handles rolls up to 1.5m diameter × 3.8m width
Auto-blade retraction reduces manual operation
Durable blades withstand 500+ cuts per set
Application Scenarios

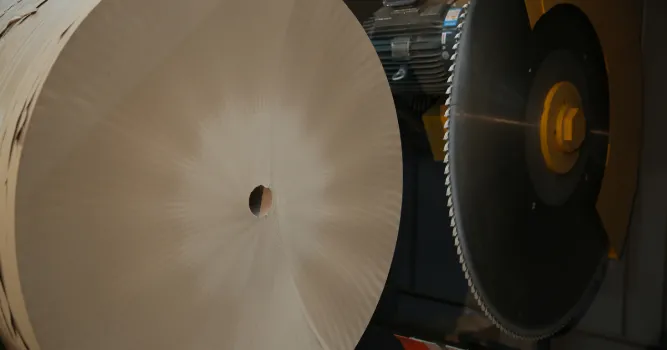

Trim Damaged Edges

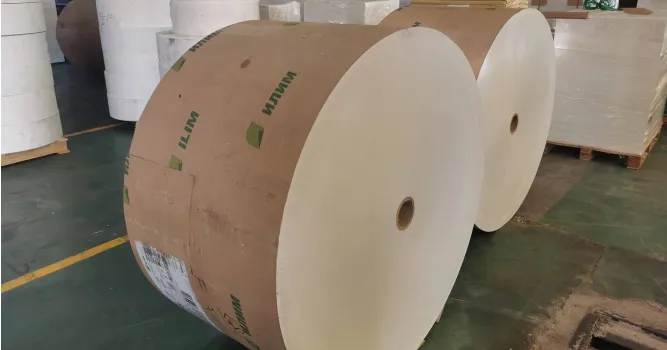

Base Paper Width Adjustment
Details
In modern packaging, printing, and paper processing industries, efficiency, precision, and reliability define the success of production lines. A Jumbo Roll Cutting Machine is no longer just an auxiliary tool—it is a critical investment that directly impacts material utilization, production speed, and operational costs.
A Jumbo Roll Cutting Machine is designed to cut large rolls of paper, plastic film, aluminum foil, or other flexible materials into smaller, precisely measured rolls or sheets. Unlike conventional cutters, these machines can handle:
Widths over 1,500 mm
Diameters up to 1,200 mm
Weights of several tons
Paper roll slitting machine is widely used in packaging, printing, hygiene products, labels, and lamination industries.
| Model | Z1500 Paper Roll Cutter |
| Paper Width | 50-3800mm |
| Paper DIA | 40cm-1.5m (customizable) |
| Speed | 5-8mins/roll |
| Voltage | 380V(customizable) |
| Frequency | 50-60Hz (customizable) |
| Total Power | 45KW |
| Weight | 4T |
| Cutter blade speed | 740R/min |
| How to Place | Plat on level ground, willfully adjust allowed |
| Blade life time | The blade should be sharpened by special tool after cutting 500 times. |
| LxWxH | 4900x3800x2300mm |
When selecting a machine, professionals look for features that improve efficiency, reduce waste, and ensure safe operation:
CNC-controlled blades for exact width and length
Minimized material waste through precise alignment and tension control
Continuous cutting to meet high-volume production demands
Adjustable speed for optimal balance between quality and efficiency
Suitable for coated paper, BOPP/CPP films, aluminum foil, and laminates
Options for slitting, cross-cutting, or perforation depending on product requirements
PLC touch-screen interface for simple operation
Automatic roll feeding and unloading to reduce labor
Sensors for roll diameter, core size, and tension
Emergency stop, protective guards, and interlocks
Meets CE, ISO, and other international safety standards
A jumbo roll cutting machine can be applied in various sectors:
Flexible Packaging: Convert jumbo film rolls into smaller sizes for food, snack, and pharmaceutical packaging.
Printing Industry: Cut paper or film for labels, bookbinding, and high-volume print jobs.
Hygiene Products: Slit tissue, napkins, and sanitary products with precision.
Industrial Film & Laminates: Handle protective films, aluminum laminates, and specialty composite materials.
Understanding what materials and roll sizes a machine can handle is critical:
| Specification | Typical Range |
|---|---|
| Roll Width | 500 mm – 2,500 mm |
| Roll Diameter | 300 mm – 1,200 mm |
| Core Diameter | 1” – 3” (customizable) |
| Material Types | Paper, PE/PP/BOPP films, aluminum foil, laminates |
| Tension Control | Servo-driven or pneumatic |
For operations managers and procurement teams, a high-quality jumbo roll cutter offers:
Cost Efficiency: Reduce material waste and labor intervention.
Faster Production: Achieve higher throughput with reliable cutting speed.
Consistent Quality: Each slit roll meets exact specifications for downstream processes.
Flexibility: Adjust easily for different product lines without extra tooling.
Consider the following when choosing a jumbo roll cutter:
Production Volume: Ensure speed and capacity match your output requirements.
Material Compatibility: Verify blade type, tension control, and drive system suit your materials.
Automation Level: Decide how much manual operation is acceptable.
After-Sales Support: Look for installation, training, and spare parts availability.
Return on Investment: Factor in reduced waste, labor savings, and improved efficiency over time.
Our brand, Paper Saw King, offers industrial-grade jumbo roll cutting machines designed for precision, reliability, and efficiency. We combine advanced CNC technology with robust design to meet diverse production demands, helping your operations stay competitive. For personalized solutions, our team can recommend the best machine configuration for your material type, production speed, and automation level. Request a quote today and discover how a Jumbo Roll Cutting Machine can optimize your manufacturing workflow.
Customized Products
We offer comprehensive customization services that cover appearance, functionality, and configuration – please feel free to share your specific requirements.
