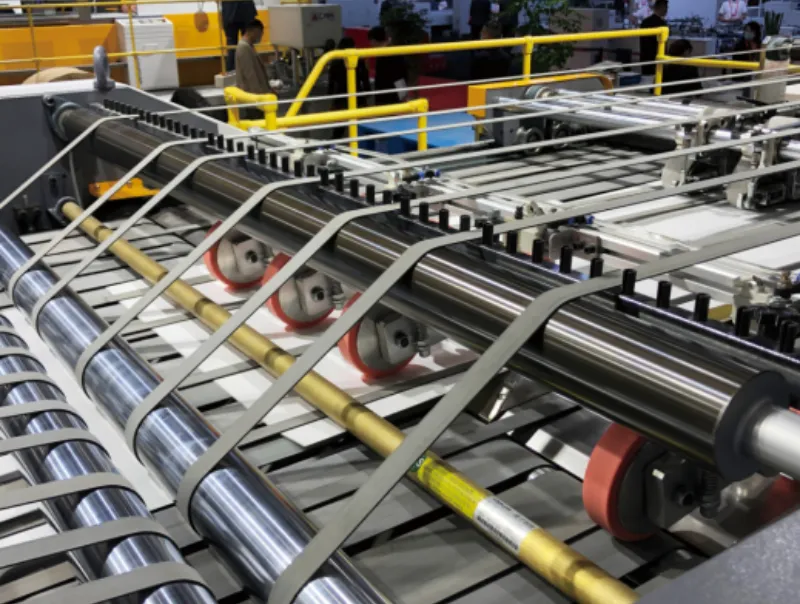

HSC Paper Sheeting Machine

Servo-controlled twin knife paper sheeter for accurate roll-to-sheet cutting up to 1000 GSM

The HSC High Precision Paper Sheeter Machine is designed for accurate, high-speed roll-to-sheet conversion of cardboard, coated paper, kraft paper, cultural paper, art paper, duplex board and packaging paper.

Featuring a synchronous rotary cutting system, high-power AC servo drive and patented embedded cutting head technology, the machine delivers stable cross cutting with clean, straight edges while reducing fiber pull-out and paper hairs.

With a paper weight range of 150–1000 GSM, cutting widths up to 1500/1700/1900mm, and a maximum cutting speed of 300m/min, the HSC Series is suitable for high-volume paper converting and packaging production where dimensional consistency and finished sheet quality are critical.

Send us your paper type, GSM, reel width and required sheet size for machine selection and quotation.

High Precision Paper Sheeter Machine Specification

Key Features of the HSC Precision Paper Sheeter

High Precision Servo-Controlled Cutting

The HSC paper sheeter uses high-power AC servo motors and a synchronized rotary cutting system to maintain stable sheet length during high-speed production.

The specified cutting accuracy is ±0.15mm, making the machine suitable for applications where consistent finished sheet dimensions are required.

Twin Knife Rotary Cutting System

The machine uses:

Twin knife, Top blade and bottom blade rotary cutting

The synchronized rotary knife structure provides efficient cross cutting while maintaining clean and straight sheet edges.

This makes the HSC Series suitable for continuous processing of heavier paper and board materials.

Clean Cutting with Reduced Paper Hairs

Our patented embedded cutting head technology is designed to produce straight cross-sections while reducing fiber pull-out during cutting.

Cleaner edges help minimize paper hairs and secondary finishing requirements, which is especially valuable for premium printing and packaging applications.

Handles Paper and Board Up to 1000 GSM

The machine supports a wide paper weight range of:

150–1000 GSM

Typical materials include:

• Cardboard

• Coated paper

• Kraft paper

• Cultural paper

• Art paper

• Duplex board

• Packaging paper

This wide material range makes the machine suitable for converters handling multiple paper and board grades.

High-Speed Roll to Sheet Production

The HSC Series is engineered for industrial-scale paper converting.

With a maximum cutting speed of 300m/min and up to 400 cuts/min, the machine supports high-volume sheet production while maintaining stable cutting performance.

The actual production output depends on material type, paper weight and operating conditions.

For manufacturers converting large paper reels into finished sheets, this high precision paper sheeter helps improve productivity while reducing reliance on manual sheet cutting processes.

HSC-1500SS / 1700SS / 1900SS Cutting Width Options

Different converting operations require different working widths.

The HSC Series is available with maximum cutting widths of:

• 1500mm

• 1700mm

• 1900mm

This allows manufacturers to select the machine according to their reel width, finished sheet dimensions and production requirements.

The cut-off length range is:

Min.400-Max.1650 mm

Applications of the High Precision Paper Sheeter Machine

Packaging Paper and Board

Suitable for converting paper and board used in:

• Folding cartons

• Cosmetic packaging

• Pharmaceutical packaging

• Food packaging

• Gift boxes

• Consumer product packaging

• General industrial packaging

Clean cutting edges and consistent sheet dimensions help improve downstream printing, laminating, die-cutting and box-making operations.

Coated and Art Paper

The machine can process coated paper and art paper where clean edges and accurate sheet dimensions are important for printing and finishing.

Kraft Paper

For kraft paper converters, the HSC paper roll to sheet cutting machine provides high-speed cross cutting for packaging and industrial paper applications.

Cardboard and Duplex Board

With its 150–1000 GSM working range, the machine is suitable for heavier cardboard and duplex board applications that require stable sheet cutting.

Why Choose a High Precision Paper Sheeter?

Sheet quality directly affects downstream converting efficiency.

Variations in sheet length, rough edges or excessive paper fibers can create problems during:

• Printing

• Laminating

• Coating

• Die cutting

• Folding

• Packaging production

The HSC precision paper sheeting machine combines servo control, twin rotary knives and embedded cutting head technology to help manufacturers achieve more consistent finished sheets at industrial production speeds.

It is particularly suitable for converters producing high-value packaging materials where both productivity and sheet quality are important.

Core Advantages

Accurate Sheet Length Control

Servo-driven cutting helps maintain repeatable sheet dimensions throughout continuous production.

Clean Cross Cutting

The embedded cutting head design helps reduce fiber pull-out and paper hairs, producing cleaner finished edges.

High-Speed Production

Maximum cutting speed reaches 300m/min, with maximum cutting frequency of 400cuts/min.

Wide Material Range

Processes paper and board from 150–1000 GSM.

Multiple Machine Widths

Available in 1500mm, 1700mm and 1900mm maximum cutting widths.

Heavy-Duty Reel Handling

Standard reel stand load capacity is 2.5T, with 3T-4T available as an option.

How to Select the Right HSC Paper Sheeter

Before selecting a high precision paper sheeter machine, several production factors should be considered:

• Paper or board type

• Paper weight in GSM

• Reel width

• Reel diameter

• Required finished sheet width

• Required cut-off length

• Required daily production capacity

• Downstream printing or packaging process

For example, manufacturers processing heavier packaging board may place more emphasis on stable heavy-duty cutting, while coated paper converters may focus more on edge quality and sheet dimensional consistency.

Providing these production details allows us to recommend the appropriate HSC-1500SS, HSC-1700SS or HSC-1900SS configuration.

Why Choose Our HSC Paper Sheeter?

Designed for Industrial Paper Converting

The HSC Series is developed for continuous roll-to-sheet production and high-volume converting environments.

Precision Cutting Technology

Servo control, synchronous rotary cutting and embedded cutting head technology work together to support stable cutting performance.

Suitable for Premium Packaging Production

The machine is well suited to paper and board used in cosmetics, pharmaceutical and other high-quality packaging applications.

Multiple Width Options

1500mm, 1700mm and 1900mm models allow the machine to match different reel and sheet sizes.

Technical and Application Support

We can recommend machine configurations according to your paper grade, GSM, reel size, finished sheet dimensions and production requirements.

Get a Paper Sheeting Solution for Your Production Line

Choosing the right high precision paper sheeter depends on more than cutting speed alone.

Paper weight, reel width, finished sheet length, edge quality and production volume all affect machine selection.

Send us your:

• Paper material

• Paper weight

• Reel width and diameter

• Required sheet size

• Daily production capacity

• Local voltage

Our team can recommend the appropriate HSC machine configuration for your production requirements.

Contact us for machine selection, technical details and quotation.

Frequently Asked Questions

What is a high precision paper sheeter machine?

A high precision paper sheeter machine converts paper reels into accurately sized sheets through continuous cross cutting. It is commonly used by paper converters, printing companies and packaging manufacturers that require consistent sheet dimensions and high production efficiency.

What paper weight can the HSC paper sheeter process?

The specified paper weight range is 150-1000 GSM.

What materials can this paper sheeter cut?

The HSC Series is designed for materials including cardboard, coated paper, kraft paper, cultural paper, art paper, duplex board and packaging paper.

What is the cutting accuracy?

The specified cutting accuracy is ±0.15mm.

What cutting system does the machine use?

The machine uses Twin knife, Top blade and bottom blade rotary cutting.

What is the maximum cutting speed?

The specified maximum cutting speed is 300m/min.

How many cuts can the machine make per minute?

The specified maximum cutting speed is 400cuts/min.

What cutting widths are available?

The HSC Series provides maximum cutting widths of 1500/1700/1900mm (66.9").

What is the cut-off length range?

The specified cut-off length range is Min.400-Max.1650 mm.

Can the machine handle large paper reels?

The reel stand load capacity is 2.5T (option 3T-4T), with a maximum reel diameter of 1800mm (71").

How do I choose between HSC-1500SS, HSC-1700SS and HSC-1900SS?

The main selection factor is the required cutting width, together with your reel size, paper GSM, finished sheet dimensions and production capacity. Send us these details and we can recommend the appropriate model.
